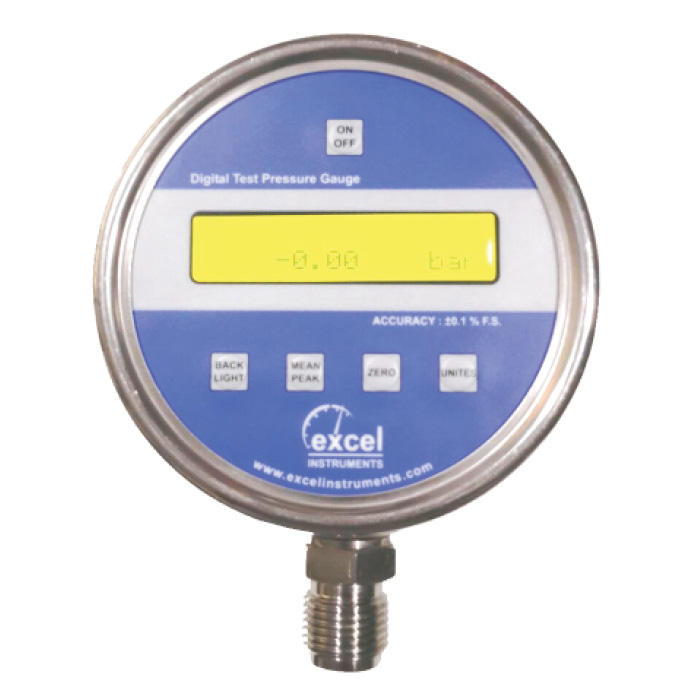

Features:

• Micro Controller based
• Large backlight alpha numeric display
• Feather Touch keypad for easy operation
• ‘Auto OFF’ function for longer battery life
• Dedicated ZERO key for Zeroing before test
• Peak Pressure measurements (+P & -P)

Application:

• Ideal for calibration of Pressure Gauges, Vacuum Gauges, & Other Pressure and Vacuum Instruments & Calibration Lab etc.

BPZ digital pressure gauge use HT series piezoresistive silicon pressure sensor as signal measure element. It utilizes ASICdesign and stainless steel isolate diaphragm. It has high accuracy, good stability, long life. They use the large LCD digital display, mm( high ,eliminates the guesswork that occurs when taking readings with an analog dial gauge. Zeroing the display is done with the push of a button. The auto-off function will display the pressure readings for minutes (optional) before the unit automatically shuts off, prolonging battery life. 2005 18 0.71 ) 1-15

Features:

• Accuracy: 0.5% FS or batter
• Operating Temperature Range: 0 to 50!
• Battery: 9V alkaline(included)
• Case Dimensions: 67mm Dia.
• Case Material: ABS
• Unit Selectable: KPa, MPa, Bar, kg/cm2 Psi
• Wetted Parts: 316L stainless steel

Application:

• Liquid, gases which compatible with 316LSS Used to petroleum, chemical industry, power plant, water supply of town, Hydro logic exploration fields.

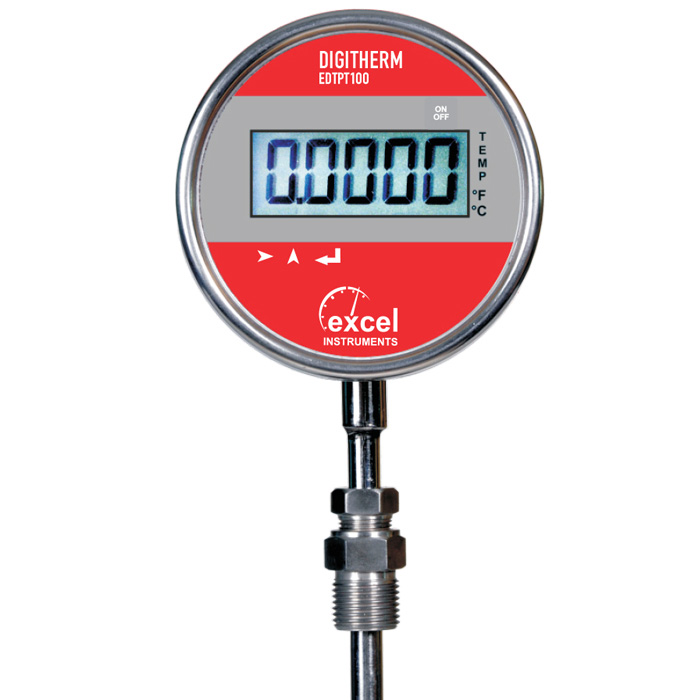

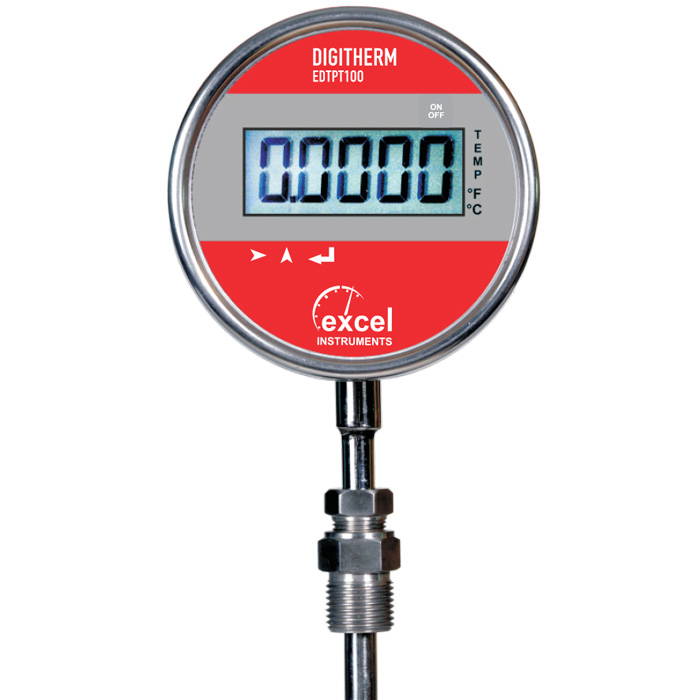

Features:

• Micro Controller based
• Available in Rigid Stem type either Horizontal or Vertical Mounting or every angel type
• Feather Touch keypad for easy operation
• Also available in distant type (capillary type) up to 10 Meter Extension length.
• Wide temperature range -100°c to 450°C in RTD and -50°c to +1000°C in “K” type Thermocouple.
• Available in 180° adjustable type in one plane.
• Battery operated, (1.5x4 alkaline battery)
• Battery life 2 years in Continuous Operation

Application:

• Ideal for all types of Process Industry
• “ DIGITHERM” can replace the conventional mercury-in-steel, Inert Gas System, Vapor Pressure and Bimetallic Temperature gauges. The most important plus point of this instruments that It can be easily calibrated, repair by changing the Sensor.

Special Features

• Micro Controller Base
• Available In Rigid Stem Type Either Horizontal Or Vertical Mounting Or Every Angel Type
• Feather Touch Keypad For Easy Operation
• Also Available In Distant Type(Capillary Type) Up to 10 Mtr Extension Length
• Wide Temperature Range -100c To 450 C In RTD And -50c To +1000c In K Type Thermocouple.
• Available In 180adjustable Type In One Plane
• Battery Operated
• Battery Life 2 Years In Continuous  Operation

Application

• Ideal For All Type Of Process Industry
• DIGITHERM Can Replace The Conventional Mercury In Steel ,Inert Gas System, Vapor Pressure And Bimetallic Temperature Gauges
• The Most Important Plus Point Of This Instrument That It Can Be Easily  Calibrated Repair By Changing The Sensor.
