Low Pressure Gauges

Give us your email & we provide our latest Product
  • Home
  • Products
  • Low Pressure Gauges
  • CC4. CC6
  • LPD
  • SCH

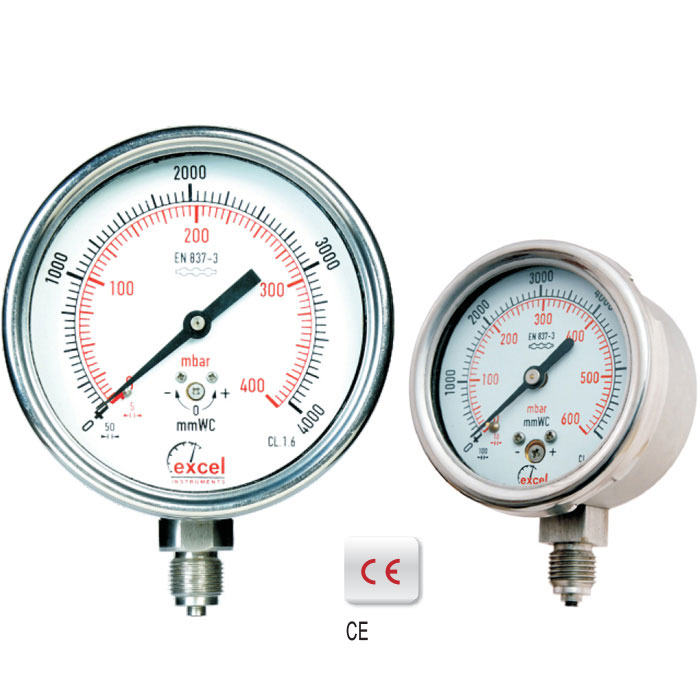

CC4

All SS (SS 304) Pressure Gauge
Capsule type

CC6

All SS (SS 316) Pressure Gauge
Capsule type

Download Brochure

Special Features:-

  • Stainless steel case & ring
  • Available ranges : 10 mbar to 1000 mbar
  • Compact design
  • Provision for zero adjustment
  • Standard followed in general EN 837-3

Application:-

  • Low pressure draft measurment
  • Food & berverages.
  • Pharmaceutical
  • Breweries
  • Conventional
  • Nuclear power plants
  • Clean air
  • Gaseous
  • Low viscous liquid & non corrosive media that will not obstruct the pressure system.
Download Brochure

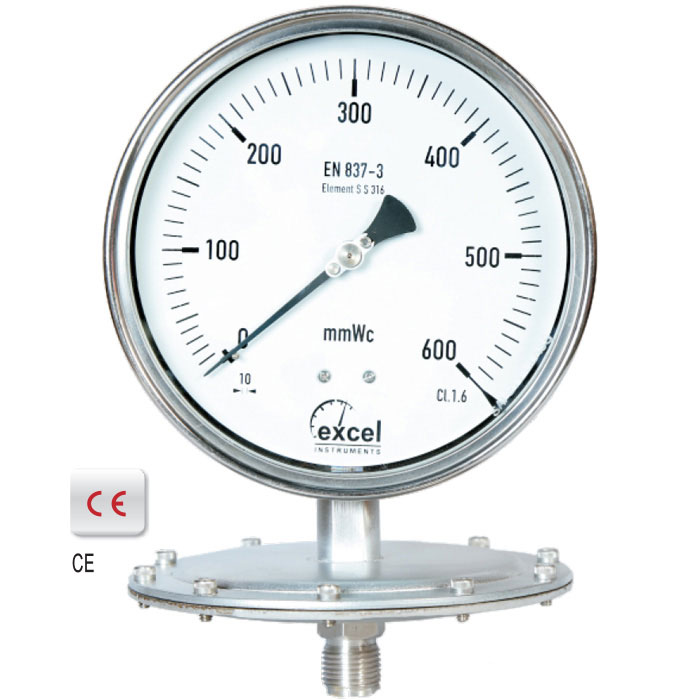

LPD

All SS Pressure Gauge
Low  Pressure Diaphragm Type

Special Features:-

  • Stainless steel case & measuring system
  • Selectable ranges from 0 to 250 mmwc to Max. 6000 mmWC Pressure and Vacuum
  • Flanged or screwed connection
  • Syandard followed in general EN 837-3
  • CE approved electrical contacts

Application:-

  • Suitable for clean air
  • Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.
Download Brochure

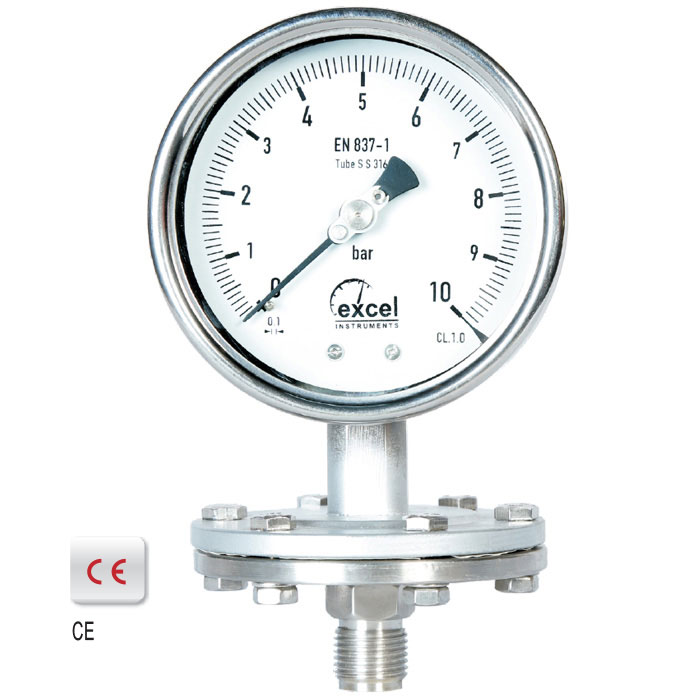

SCH

All SS Press Gauge
Schaffer Diaphragm Type Pressure Gauge

Special Features:-

  • Stainless steel case & measuring system
  • Selectable ranges from -1  to 14 Bar Pressure and Vacuum & Compound
  • Flanged or screwed connection
  • Standard followed in general EN 837-3
  • CE approved electrical contacts

Application:-

  • Suitable for clean air
  • Corrosive environments & Gaseous or non crystallized liquid media that will not obstruct the pressure system.
