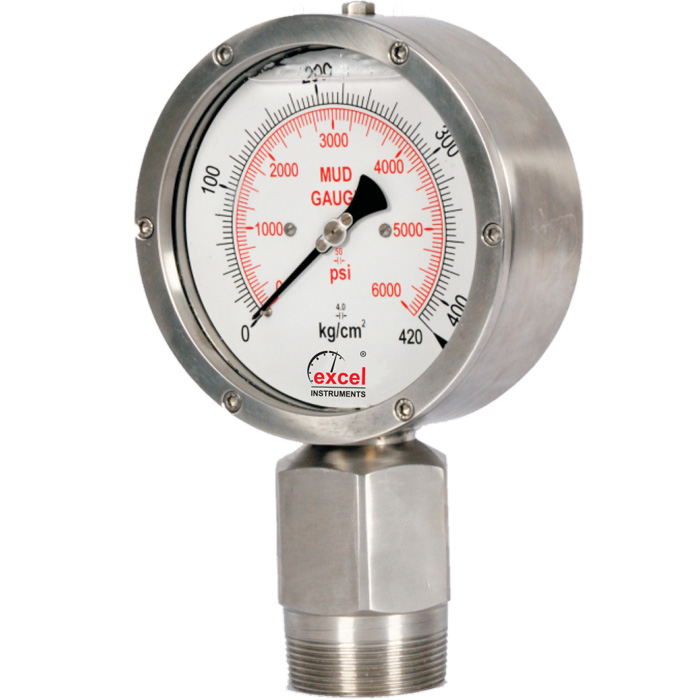

MUD

MUD Pressure Gauge
Diaphragm Operated

Special Features:-

  • Rugged Construction
  • Designed for Oil Industries/Coal Industries
  • This Gauge is specially design to measure of pulsating fluids including soild particles in suspension of stand pipe od mud pump.
  • It can also be used for any other fluid
  • The Pressure ranges meet every requirement of Oil Industires

Application:-

  • MUD Pump
  • Petroleum Industries
  • Well Drilling
Download Brochure

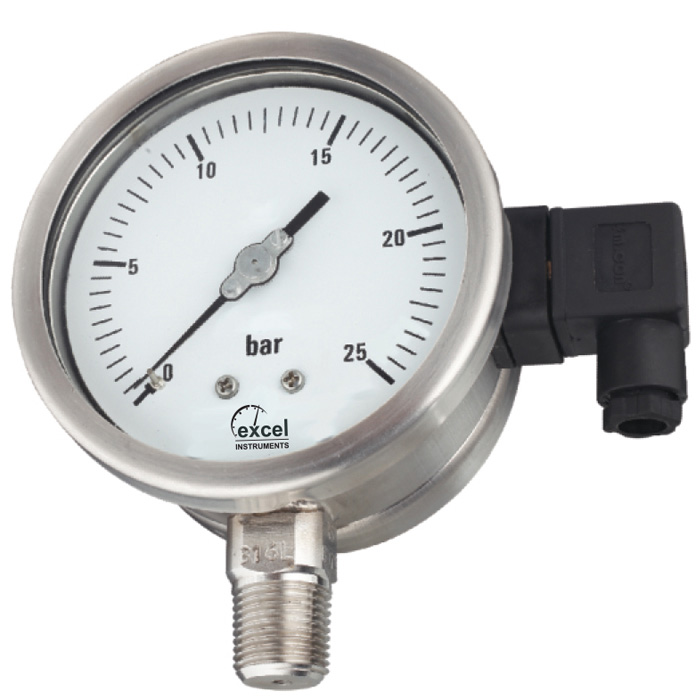

PGT

Pressure Gauge with Transmitter (4 to 20 ma out put)

Special Features:-

  • CE Approved pressure transmitter
  • Low cost
  • Local display with 4 to 20 Ma output for PLC/PID and data loggers
  • Solid front case for safety

Application:-

  • Pharmaceutical
  • Oil
  • Refrigeration
  • HVAC & compressor industries
Download Brochure

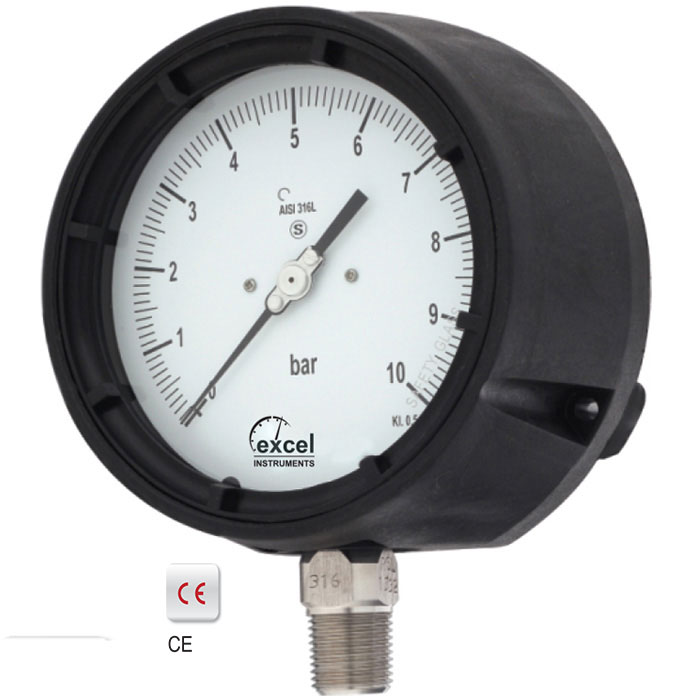

PPS

Polypropylene Case Pressure Gauge (4-1/2”)
Bourdon type

Special Features:-

  • Polypropylene case with SS measuring system
  • Wetled parts AISI 316L stainless steel
  • Accuracy +/- % F.S. (Optional -/+ 0.5 % F.S. On Request )
  • Solid front design features baffle wall interposed betwwen the sensing system the window and a pressure relieving back for increased safety
  • Standard follwed ASME – B 40.100

Application:-

  • Suitable for high pressure gas
  • Corrosive/ hazardous environment that will not obstruct the pressure system.
Download Brochure

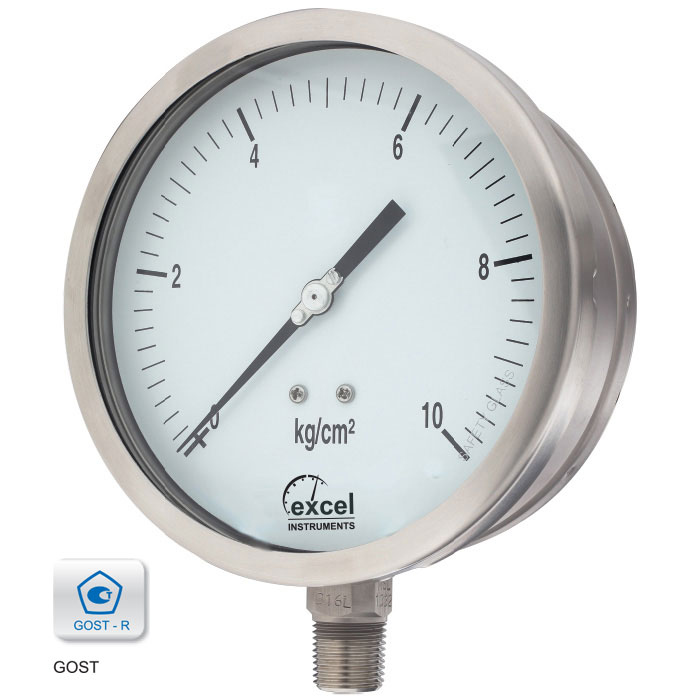

SF6

All SS Pressure Gauge
Solid Fornt

Special Features:-

  • External zero adjustment ( optional)
  • Accuracy +/- % F.S. (Optional -/+ 0.5 % F.S. On Request )
  • Solid front design features baffle wall interposed betwwen the sensing system &  the window and a pressure relieving back for increased safety
  • Standard follwed EN-837-1
  • Stainless steel blow off back

Application:-

  • Suitable for high pressure gas
  • Corrosive/ hazardous environment that will not obstruct the pressure system.

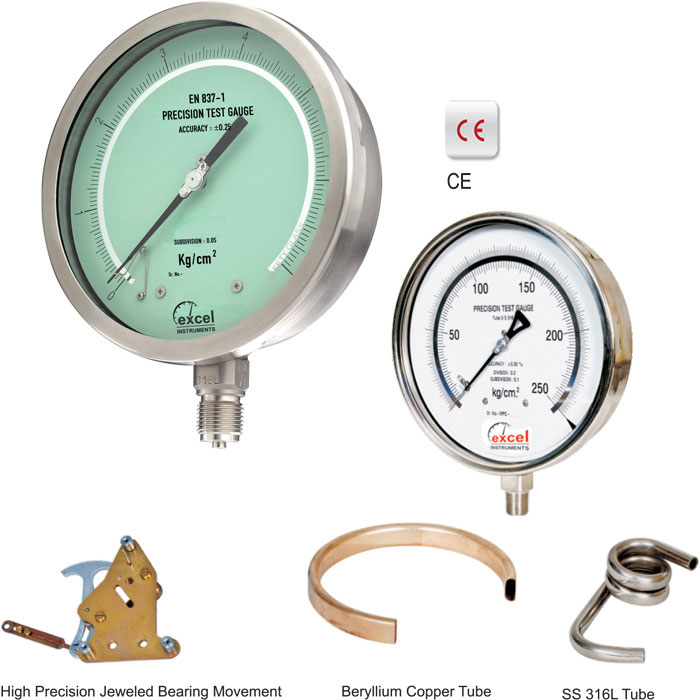

TG

SS Case Test Gauge
(Accuracy +- 0.5%) Bourdon type

MG

SS Case Type Gauge
(Accuracy +- 0.5%) Bourdon type

Download Brochure

Special Features:-

  • Stainless steel case & high precision measuring system
  • High resolution  dial
  • Anti parallax mirror band ( eye friendly)
  • Socket directly welded to case
  • Standard follwed in general EN 837-1
  • Calibration certificate with traceablity to National/ International standards

Application:-

  • Calibration /testing in laboratory
  • Fits for various process Industries and all gaseous /liquid meadia that will not obstruct the pressure system

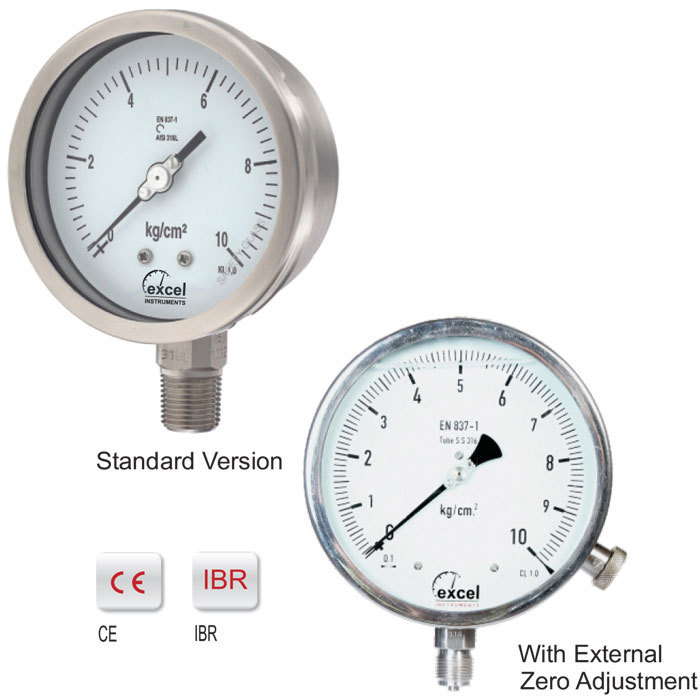

All SS (SS 316 Wetted Parts ) Pressure Gauge Bourdon type

Special Features

  • External zero adjustment (optional)
  • Stainless steel case & measuring system
  • Socket directly welded to case
  • Dry and liquid filled version
  • Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
  • CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

Application

  • Food & beverage
  • Pharmaceutical
  • Cryogenics
  • Pumps
  • Diesel engines & Refrigerating plants
  • Chemical & Petrochemical industries
  • Conventional & nuclear power plants
  • Environments & gaseous or liquid media that will not obstruct the pressure system.
  • Hydro-cleaning machines
  • Presses
  • Engine compressors
  • Turbines
  • Suitable for corrosive
Download Brochure

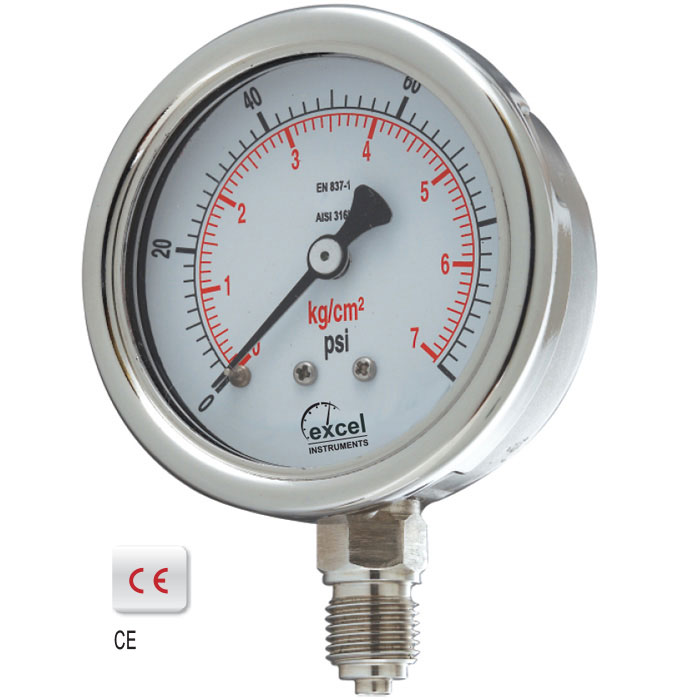

All Ss Pressure Gauge Bourdon Type (Two Part Connection System)

Special Features

  • Stainless Steel Case & Brass measuring system
  • Rugged Construction
  • DRY ORliquid filled
  • Standard Followed in general EN-837

Application

  • Engine Compressor
  • Food And Beverages
  • Diesiel Engines
  • Equipments
  • Pumps
  • Chemicals
  • Conventional
  • Prresses
  • Nuclear Power Plant
  • Pharmaceutical
  • Turbines
  • Presses
  • Hydraulic
  • Hydro-Cleaning Machines
  • Referegrator Plant And Gaseous/Liquid Media That Will Not Obstruct The Pressure System.
Download Brochure
