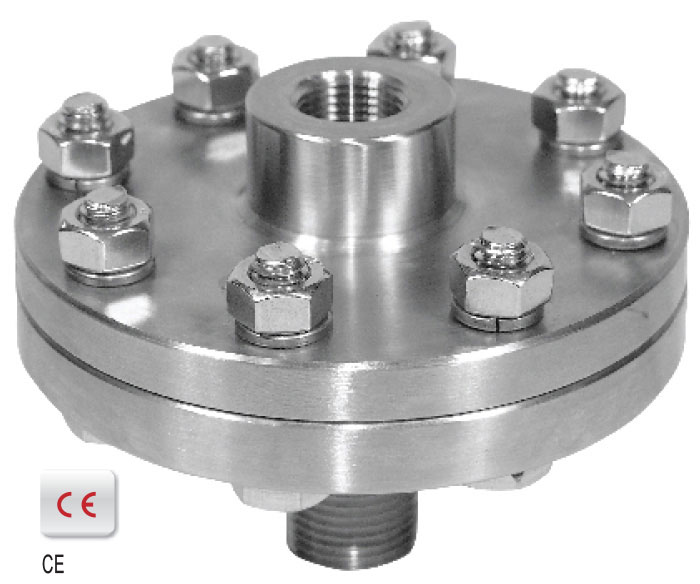

Special Features

• Robust two piece design
• The diaphragm is welded to the body to ensure separation of the filling fluid from the process medium
• All SS construction

Application

• Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive, viscous, sedimentous and / or with a high temperature.

Special Features

• Welded diaphragm
• Easy flushing (through flushing ring)
• Most suitable for slurry, corrosive & high viscous service
• Flushing ring , flange & diaphragm are available in various type of SS & exotic materials.

Application

• Diaphragm Seals Are Provided In The Instruments Like Pressure Gauges, Switches, Transmitters In Order To Isolate The Sensing Element From The Main Service Due To Its Corrosive, Viscous And Sedimented Nature And To Avoid Clogging And Solidification. These Kind Of Seals Are Widely Used In The Viscous & Corrosive Services Where Flushing Is Required Periodically & Frequently.

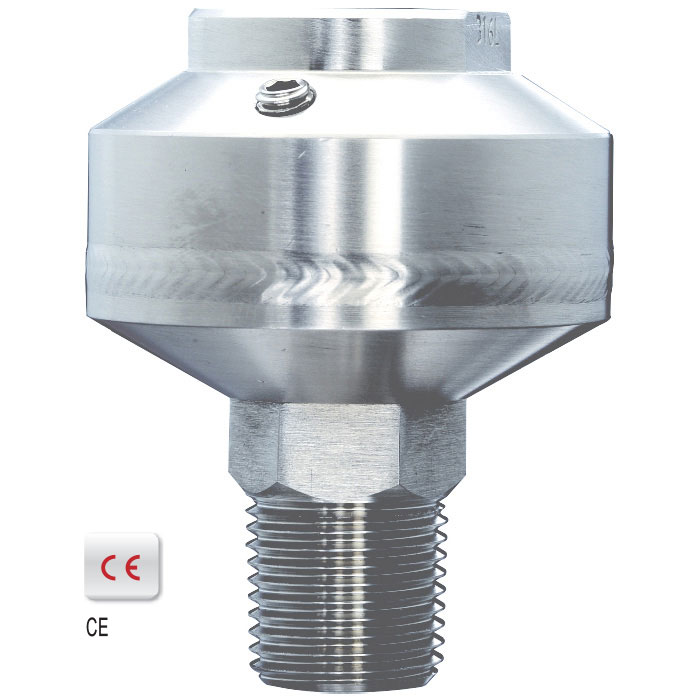

Special Features

• All AISI 316 SS construction
• Light weight
• Economical
• Ideal choice for high pressure
• The diaphragm is welded to the body to ensure separation of the filling fluid from the process medium

Application

• Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive, viscous, sedimentous and / or with a high temperature

Special Features:-

• External  zero adjustment(optional)
• Stainless steel  case and measuring  system
• Socket directly welded to case
• Dey and liquid filled version
• Standard followed EN 837-3(for ns 100, 150)
• CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
• The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium

Application:-

• Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
• Chemical and petrochemical industries
• For aggressive hot corrosive,environmentally,hazardous or toxic media
• Food and beverages
• Pharmaceutical
• Process industry

Special Features:-

• External  zero adjustment(optional)
• Stainless steel  case and measuring  system
• Socket directly welded to case
• Dry and liquid filled version
• Standard followed EN 837-3(for ns 100, 150)
• CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
• The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium

Application:-

• Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
• Chemical and petrochemical industries
• For aggressive hot corrosive,environmentally,hazardous or toxic media
• Food and beverages
• Pharmaceutical
• Process industry

Special Features:-

• External  zero adjustment(optional)
• Stainless steel  case and measuring  system
• Socket directly welded to case
• Dry and liquid filled version
• Standard followed EN 837-3(for ns 100, 150)
• CE marking (as per PED 97/23/EC (for ns 100mm &150mm)
• The diaphragm is welded to the body to ensure sepration of the filling fluid from the process medium

Application:-

• Diaphragm seales are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that they may be corrosive,viscous,sedimentous or with a high temperature
• Chemical and petrochemical industries
• For aggressive hot corrosive, environmentally, hazardous or toxic media
• Food and beverages
• Pharmaceutical
• Process industry

Special Features:-

• Ideal  Pulp And Paper Industry
• Laser Welded Pulp Diaphragm
• Continious Duty
• Easy To Clean
• Availble With Anti Vibration Spring
• For Vertical Instalation Also With L-Bow 90 Or L-Bow 90

Application

• Chemical Pulp Manufacture
• Recovered /Recycle Paper Treatment
• For Highly Viscous,Aggressive Or Hardning Media

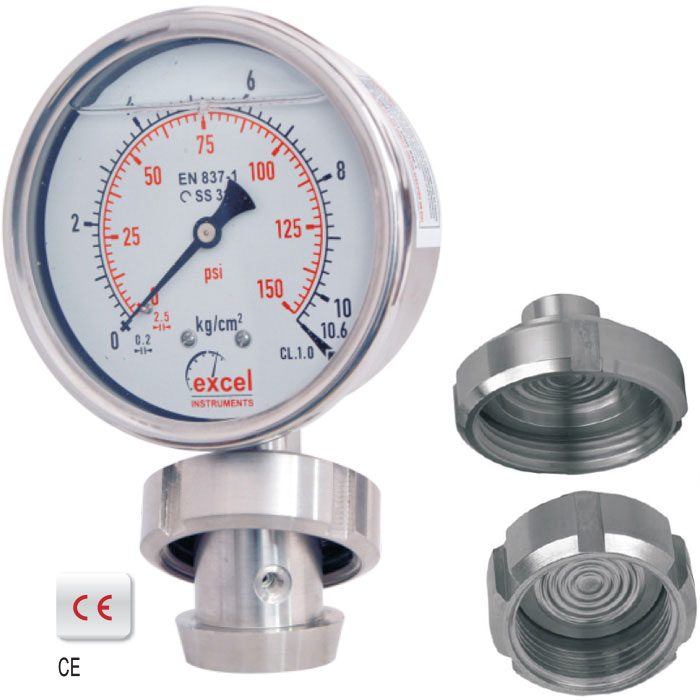

Special Features:

• Stainless Steel Case And Measuring System
• Measure Welded Diaphragm
• Dry And Liquid Filled Version
• Diaphragm Seal Integrally Built With Gauge
• Reduce The Effect Of Vibration
• Polished Diaphragm Provides Best Hygiene Factor
• Standard Followed En 837-3

Application

• Especially Design For sanitary Application
• Pharmaceutical
• Paint Industry
• Bacterial And Fungal Accumulates Which  Contaminate The Process Are  Eliminated
• The Mirror Finishing Of Components Assures The Best Hygiene

SPECIAL FEATURES:

• Stainless steel  case and measuring  system
• Measure welded diaphragm
• Dry  and liquid filled version
• diaphragm seal integrally built with gauge
• reduce the effect of vibration
• polished diaphragm provides best hygiene factor
• standard followed EN 837-3

APPLICATION

• Especially   Design   For   Sanitary   Application
• Pharmaceutical
• Paint Industry
• Bacterial And Fungal Accumulates Which  Contaminate The Process Are  Eliminated
• The Miror Finishing Of Components Assures The Best Hygiene

Special Features

• Welded diaphragm
• Most suitable for slurry & corrosive service
• Flushing ring, flange & diaphragm are Available in various type of ss & exotic materials

Application

• Diaphragm seals are provided in the instruments like pressure Gauges, switches, transmitters in order to isolate the sensing Element from the main service due to its corrosive, viscous and Sedimented nature and to avoid clogging and solidification.
• These kind of seals are widely used in the viscous & corrosive services where flushing is required periodically & frequently

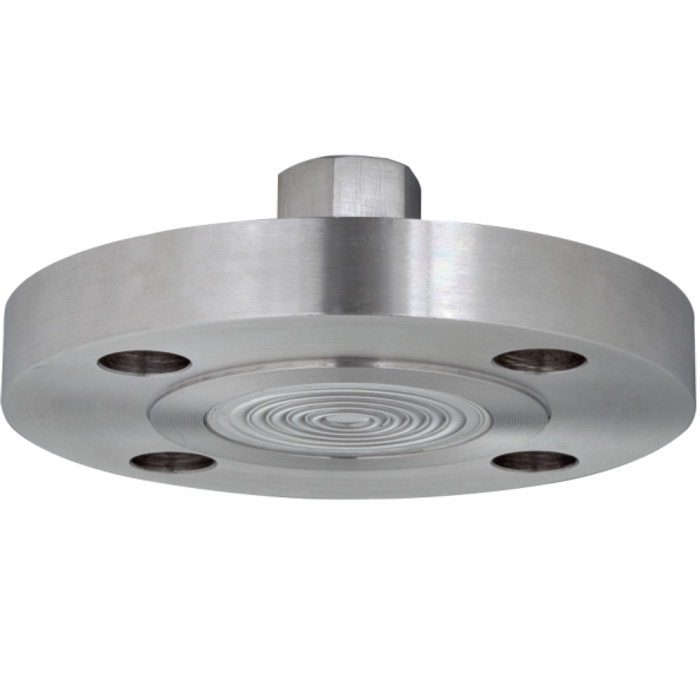

Special Features

• Ideal for pressure transmitter
• Laser welded diaphragm
• One piece AISI 316 SS construction
• Flush diaphragm

Application

• Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification

Special Features

• CE Approved electrical contacts
• Laser welded diaphragm
• Filled version facilitate usage in vibration Zones to avoid damages to its mechanism.
• Suitable for homogenizer machines.
• Electrical contact options available.
• Standard followed in general EN 837-3.

Application

• These gauges are being used in applications where Hygiene is of prime importance like dairy
• Food
• Ice cream
• Beverages
• Pharmaceutical industries
• Sterilization.

Special Features:-

• Laser Welded Flush Diaphragm
• Quick Connect/Disconnect For Easy Cleaning
• Suitablr For Full ,Diary And Pharma Industries

Application

Diphragm Seal Are Provided In The Instrument Like Pressure Gauges,Switches, In Order To Isolatet The Sensing Element From The Main Service Due To Its Corrosive,Viscous And Sendimented Nature And To Avoid Dogging And Solidification.These Seals Are Used In Hygein Apllication Where Purity In Process Is Essential -Typically In Food,Diary Beverages And Pharmaceutical Industry
